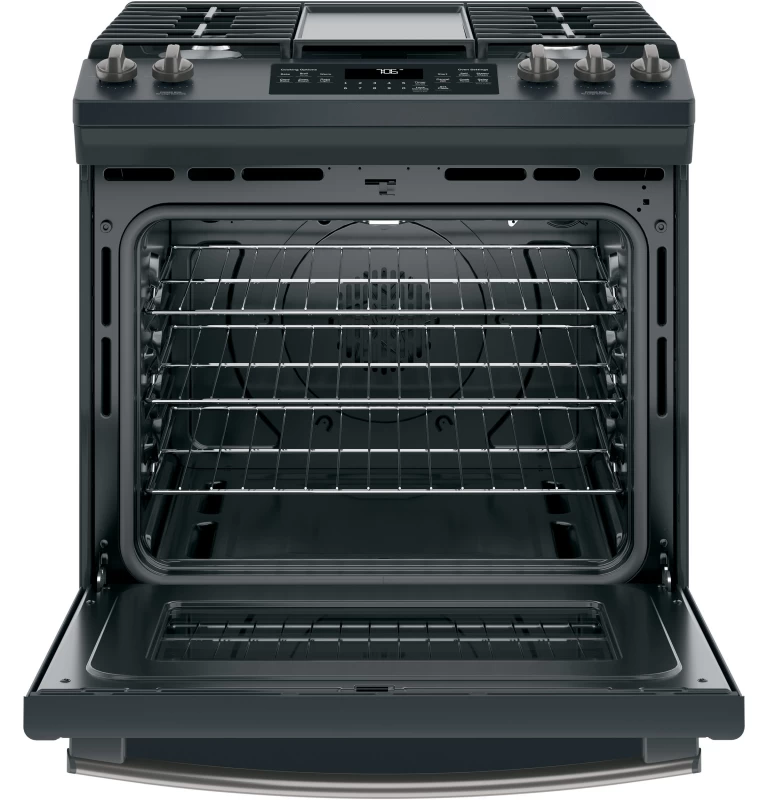

30" Slide-In Front-Control Convection Gas Range - JGS760FELDS
30" Slide-In Front-Control Convection Gas Range
Model: JGS760FELDS
Product Video
30" Slide-In Front-Control Convection Gas Range
Model: JGS760FELDS
Color : Black Slate
Key Features
Edge-to-edge cooktop
Extra-large integrated griddle
18,000 BTU Power Boil burner
Self-clean with Steam Clean option
Heavy duty, dishwasher safe grates
Smooth-glide storage drawer
ADA Compliant
CSA
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Edge-to-edge cooktop
Extra-large integrated griddle
18,000 BTU Power Boil burner
Self-clean with Steam Clean option
Heavy duty, dishwasher safe grates
Smooth-glide storage drawer
ADA Compliant
CSA
California Prop 65
Fit Guarantee
Gas convection
10,000 BTU oval burner
Precise Simmer burner
Certifications
ADA Compliant
CSA
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 41.25 in. |
| Shipping Length | 34.25 in. |
| Shipping Weight | 264 lbs. |
| Total of Shipping Weight | 264 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 18.41 ft³ |
| Dimensional Weight | 228.84 lbs. |
| Total of Cubes | 18.41 ft³ |
| Total of Dimensional Weight | 228.84 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 36.25 in. |
| Length | 29.25 in. |
| Weight | 224 lbs. |
| Net Weight | 224 lb |
| Depth Without Handle | 26.75 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 244 lb |
| Cabinet Opening | 30 in |
| Height to Top of Rear Vent Trim | 37.375 in |
| Depth with Door Open | 47.5 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Installation | Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Black Stainless |
| Handle Color | Black Stainless |
| Color Appearance | Fingerprint Resistant Black Slate |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | Black |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 3 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Integrated (Included) |
| Product Type | Slide-In Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU |
| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Smooth Glide Storage Drawer |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 15,000 BTU Power Boil |
| Cooktop Surface | Edge-to-Edge |
| Self-Clean Oven Door Lock | Automatic |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 14.5 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | Integrated Griddle (Included) |
| LP Conversion Kit | Included |
| Trim Kit | Optional |
CAPACITY
| Total Capacity (cubic feet) | 5.6 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
