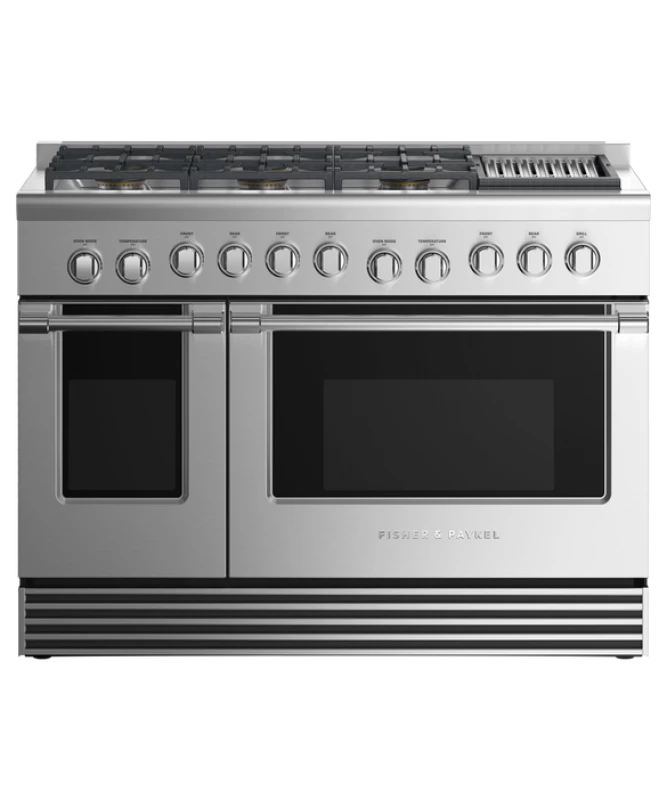

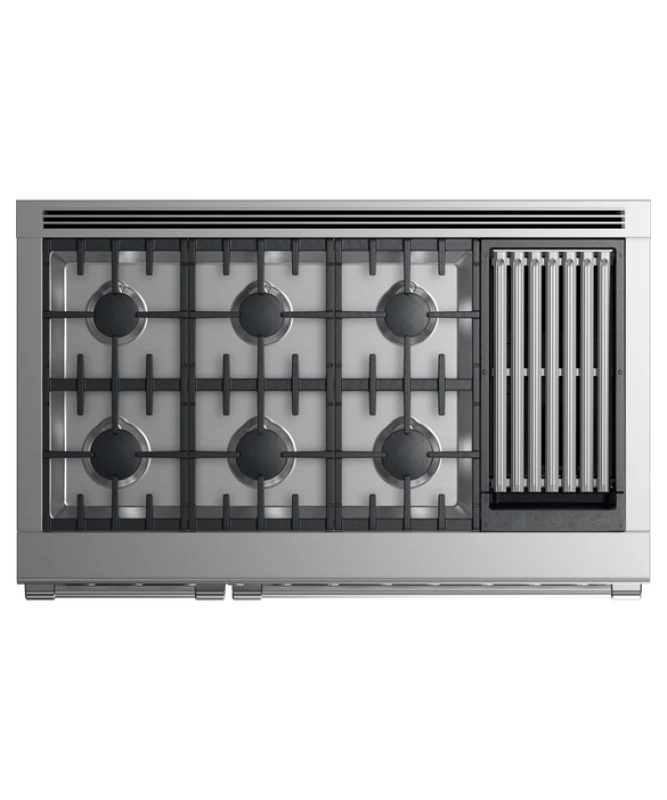

Gas Range, 48", 6 Burners with Grill - RGV2486GLNN
Color : Stainless Steel
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Documents
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Specifications
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Number of main oven functions | 3 |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Depth | 29 1â„8" |
| Height | 35 3â„4 - 36 3â„4" |
| Width | 47 7â„8" |
| Sealed Dual Flow Burnersâ„¢ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power grill | 12,000 BTU |
| Total cooktop power | 128,000 BTU |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Number of secondary oven functions | 2 |
| Parts and labor | Limited 2 years |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Main oven features
| Capacity usable (AHAM) | 3.9 cu ft |
| Capacity total (AHAM) | 5.3 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
Main oven functions
| Number of main oven functions | 3 |
Oven performance
| Main oven - Broil power | 19,000 BTU |
| Main oven - Bake power | 28,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Bake | Yes |
| Bake | 28000 BTU |
| Yes |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Amperage | 15A |
| Rated current | 15A |
| Yes |
Product dimensions
| Height | 35 3â„4 - 36 3â„4" |
| Depth | 29 1â„8" |
| Width | 47 7â„8" |
| Depth | 29 1/8" |
| Width | 47 7/8" |
| Height | 35 3/4 - 36 3/4" |
| Yes |
Rangetop features
| Sealed Dual Flow Burnersâ„¢ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Yes |
| Vent trim included | Yes |
| Sealed range top | Yes |
| Yes |
Rangetop Performance
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power grill | 12,000 BTU |
| Total cooktop power | 128,000 BTU |
Secondary oven features
| Capacity usable (AHAM) | 1.7 cu ft |
| Capacity total (AHAM) | 2.4 cu ft |
| Shelf positions | 5 |
| Internal light | Yes |
| Electronic oven control | Yes |
| Yes |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | Yes |
| Proof | Yes |
| Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Capacity
| Capacity total (AHAM) | 5.3cu ft |
| Shelf positions | 5 |
| Capacity usable (AHAM) | 3.9cu ft |
| Yes |
Cleaning
| Dishwasher proof trivets | Yes |
Controls
| Metal illuminated dials | Yes |
| Electric circuit | 3 wire |
| Yes |
Oven features
| Full extension telescopic sliding shelves | Yes |
| Yes |
Gas Requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Yes |
Installation Dimensions
| Height (excluding vent trim) | 35 3/4 - 36 3/4" |
Safety
| Full extension telescopic sliding shelves | Yes |
| ADA compliant | Yes |
| Yes |
Burner ratings
| Maximum burner power | 23500 BTU |
| Power back centre | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Power griddle | 12000BTU |
| Total cooktop power | 128000 BTU |
| Yes |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 Inch |
| Shipping Height | 40 Inch |
| Shipping Length | 34 Inch |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 Ibs |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 Ibs |
