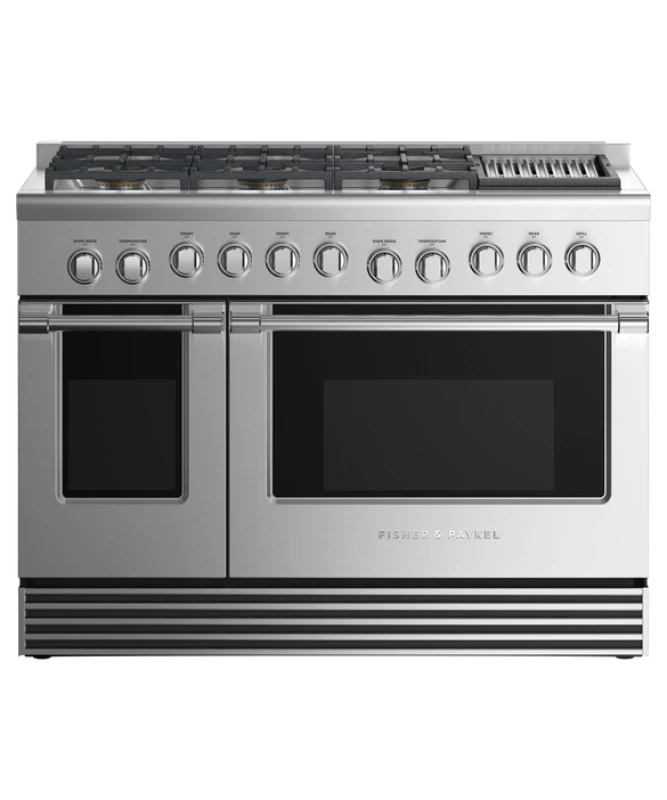

Gas Range, 48", 6 Burners with Grill, LPG - RGV2486GLLN
Gas Range, 48", 6 Burners with Grill, LPG
Model: RGV2486GLLN
Gas Range, 48", 6 Burners with Grill, LPG
Model: RGV2486GLLN
Color : Stainless Steel
Replaced By
Key Features
COOKTOP POWER
TOTAL CONTROL
EASY TO CLEAN
INSTANT VISIBILITY
COOKING FLEXIBILITY
DESIGN QUALITY
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
COOKTOP POWER
TOTAL CONTROL
EASY TO CLEAN
INSTANT VISIBILITY
COOKING FLEXIBILITY
DESIGN QUALITY
Specifications
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Number of main oven functions | 3 |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Depth | 29 1⁄8" |
| Height | 35 3⁄4 - 36 3⁄4" |
| Width | 47 7⁄8" |
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power grill | 12,000 BTU |
| Total cooktop power | 128,000 BTU |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Number of secondary oven functions | 2 |
| Parts and labor | Limited 2 years |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Main oven features
| Full extension telescopic racks | 3 |
| Capacity usable (AHAM) | 3.9 cu ft |
| Capacity total (AHAM) | 5.3 cu ft |
| Shelf positions | 5 |
Main oven functions
| Number of main oven functions | 3 |
Oven performance
| Main oven - Broil power | 19,000 BTU |
| Main oven - Bake power | 22,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Yes |
Power requirements
| Amperage | 15A |
| Supply voltage | 120V |
| Supply frequency | 60Hz |
| Rated current | 15A |
| Yes |
Product dimensions
| Width | 47 7⁄8" |
| Height | 35 3⁄4 - 36 3⁄4" |
| Depth | 29 1⁄8" |
| Yes |
Rangetop features
| Simmer on all burners | 140°F |
| Sealed Dual Flow Burners™ | 6 |
| Vent trim included | Yes |
| Sealed range top | Yes |
| Yes |
Rangetop Performance
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power back left | 18,500 BTU |
| Total cooktop power | 128,000 BTU |
| Power grill | 12,000 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front right | 18,500 BTU |
Secondary oven features
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Electronic oven control | Yes |
| Internal light | Yes |
| Yes |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | Yes |
| Proof | Yes |
| Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Burner ratings
| Maximum burner power | 19000 BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Power griddle | 12000BTU |
| Total cooktop power | 98000 BTU |
| Yes | |
| Power grill | 10000BTU |
Capacity
| Shelf positions | 5 |
| Yes |
Controls
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
| Yes |
Oven features
| Full extension telescopic sliding shelves | Yes |
| Yes |
Gas Requirements
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Yes | |
| Supply Pressure (LPG) | 11" to 14" W.C |
Safety
| ADA compliant | Yes |
| Full extension telescopic sliding shelves | Yes |
| Yes |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 Inch |
| Shipping Height | 40 Inch |
| Shipping Length | 34 Inch |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 Ibs |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 Ibs |
