6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection - LRE3023ST
This product has been discontinued by the manufacture and is no longer available.

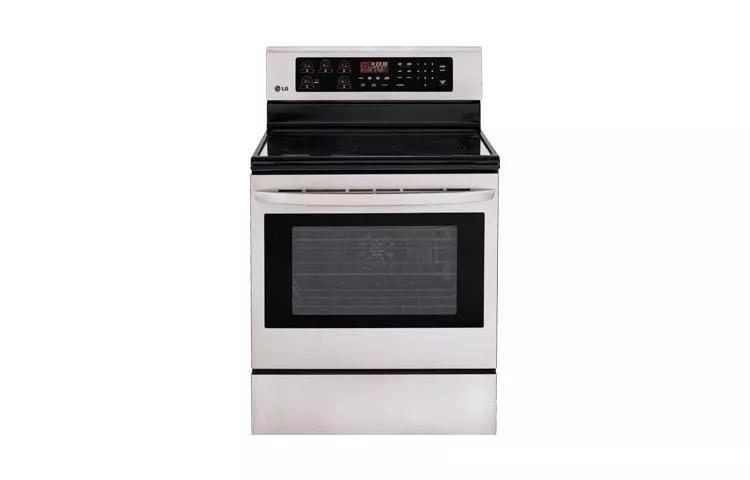

6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection
Model: LRE3023ST
This product has been discontinued by the manufacture and is no longer available.
6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection
Model: LRE3023ST
Color : Stainless Steel
Key Features
Fan Convection
Large Capacity (6.3 cu ft.)
IntuiTouch™ Controls
5 Cook Top Elements
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Specifications
Features
Fan Convection
Large Capacity (6.3 cu ft.)
IntuiTouch™ Controls
5 Cook Top Elements
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 197 lbs. |
| Total of Shipping Weight | 197 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.4 ft³ |
| Dimensional Weight | 253.6 lbs. |
| Total of Cubes | 20.4 ft³ |
| Total of Dimensional Weight | 253.6 lbs. |
POWER/RATINGS
| Amp Rating at 208V | 120 / 208 VAC |
| Amp Rating at 240V | 120 / 240 VAC |
| KW Rating at 208V | 11.5 kW |
| KW Rating at 240V | 15.3 kW |
COOKTOP
| Element Size/Wattage - Left Rear | 6" / 1200W |
| Element Size/Wattage - Right Rear | 6" / 1200W |
| Element Size/Wattage - Center Rear | 7"/100W (Warming) |
| Element Size/Wattage - Left Front | 6", 9" / 1400W, 3200W |
| Element Size/Wattage - Right Front | 9" / 2500W |
| Cooktop Burner Type | Radiant |
| Cooktop Finish | Grey Patterned on Black Ceramic Glass |
WARRANTY/UPC
| Limited Warranty | 1 Year Parts and Labor (In Home Service); 5 Years Limited on Cooktop and Radiant Surface Units |
OVEN FEATURES
| Oven Cooking Modes | Bake, Broil, Conv Bake, Conv Broil, Warm, Proof, Favorites |
| Door Lock | Yes |
| Configuration | Freestanding Electric Oven with Storage Drawer |
| Bake Element | 3400W / 6 Pass (Hidden Bake) |
| Oven Cleaning Features | Delay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours) |
| Cleaning | Self Clean (3,4,5 hours) |
| Oven Light | Yes |
SUMMARY
| Range Type | Single Door |
CONTROL
| Control Location | Backsplash |
| Control Type | IntuiTouch™ Keypad |
| Control Display | Scrolling Display / White(Green VFD+Pink Smog) |
CAPACITY
| Oven Capacity | 6.3 cu.ft. |
APPEARANCE
| Handle | Matching Stainless |
| Oven Door Feature | Large WideView™ Plus Window, Full SS Wrap |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 25 in. |
| Weight | 157 lbs. |
| Height to Cooking Surface (in) | 36" |
| Oven Interior Dimensions (Upper) (in) (W x H x D) | 24 13/16 x 19 11/16 x 19 1/4" |
| Drawer Dimensions (in) (W x H x D) | 22 3/16 x 4 1/2 x 16 3/8" |
| Carton Dimensions (in) (W x H x D) | 33 11/16 x 50 7/8 x 30 9/16" |
| Shipping Weight (lbs) | 180 |
