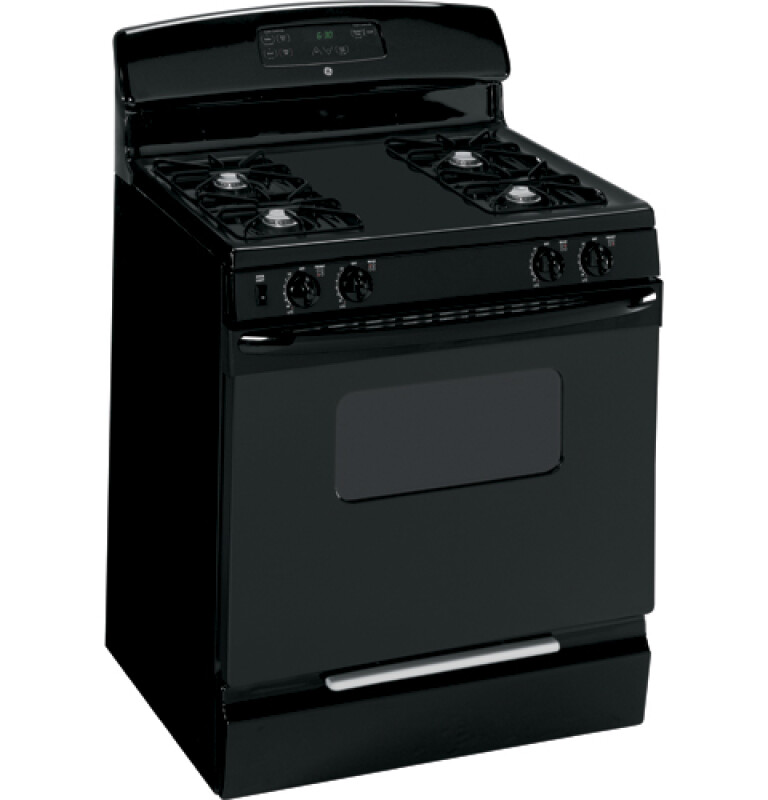

30" Free-Standing Gas Range - JGBS17DEMBB
30" Free-Standing Gas Range
Model: JGBS17DEMBB
30" Free-Standing Gas Range
Model: JGBS17DEMBB
Color : Black
Key Features
Extra-large oven capacity
All purpose burners
Electronic clock and timer
Standard grates
Porcelain oven door
Big clear view window
Designer-style handle
Broiler pan with grid
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Extra-large oven capacity
All purpose burners
Electronic clock and timer
Standard grates
Porcelain oven door
Big clear view window
Designer-style handle
Broiler pan with grid
Easy clean subtop
Electronic pilotless ignition
Interior oven light
Six rack positions
Two oven racks
California Prop 65
Certifications
California Prop 65
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | - |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock and Timer |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Clock and Minute Timer | Yes |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,100/850 BTU |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | Porcelain-Enameled Upswept |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Touchpads |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Clear View Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Porcelain-Enameled |
| Control Knobs | Designer-Style |
| Color Appearance | Black on Black |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.8 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
