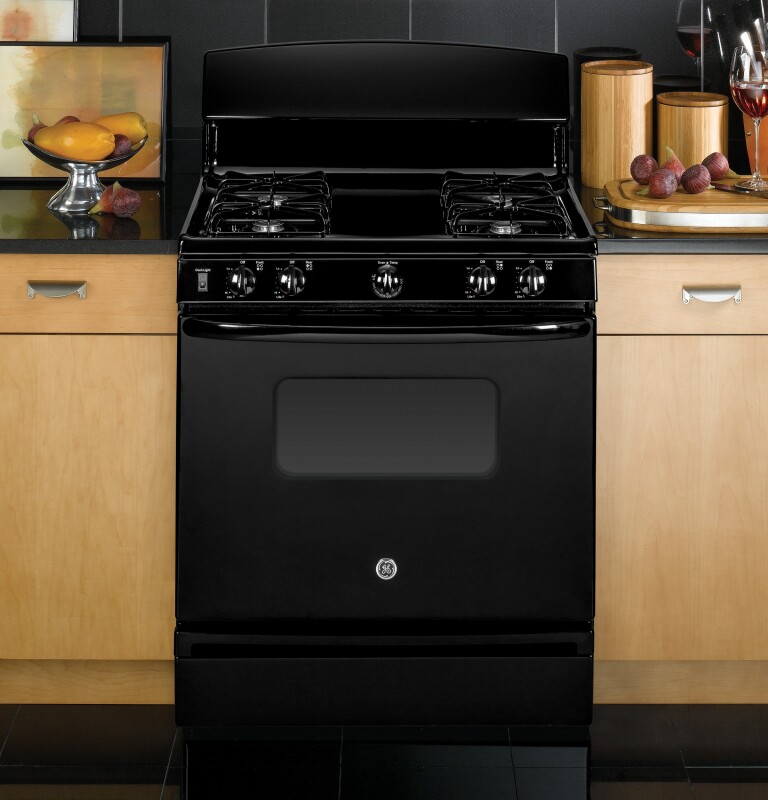

30" Free-Standing Gas Range - JGBS10DEFBB
This product is discontinued and has been replaced by the model below.
30" Free-Standing Gas Range
Model: JGBS10DEFBB
This product is discontinued and has been replaced by the model below.
30" Free-Standing Gas Range
Model: JGBS10DEFBB
Color : Black
Replaced By
Key Features
4.8 cu. ft. oven capacity
Standard clean oven
Standard grates
Porcelain upswept cooktop
ADA Compliant
California Prop 65
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Specifications
Certifications
Features
4.8 cu. ft. oven capacity
Standard clean oven
Standard grates
Porcelain upswept cooktop
ADA Compliant
California Prop 65
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 145 lbs. |
| Net Weight | 145 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
FEATURES
| Slide - Out Broiler Drawer | Drop Down Door |
| Configuration | Range with Broiler Drawer |
| Cooking System | Traditional |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Burner - Right Rear | 9,100 BTU |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Square |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |
| Drawer Type | Broiler |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Control Knobs | Color-Matched |
| Color Appearance | Black |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 Bake / 16.5 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
