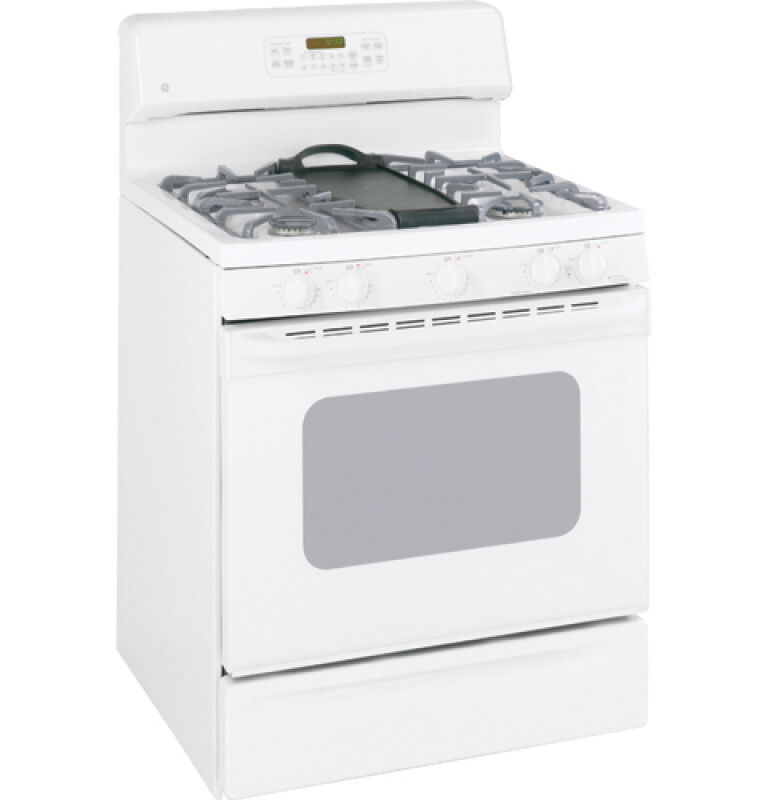

30" Free-Standing Gas Range with Warming Drawer - JGBP88WEKWW
30" Free-Standing Gas Range with Warming Drawer
Model: JGBP88WEKWW
30" Free-Standing Gas Range with Warming Drawer
Model: JGBP88WEKWW
Color : White
Key Features
Self-clean oven
Super-large oven capacity
Center oval burner
Non-stick griddle
Power Boil 16,000 BTU Burner
Precise Simmer burner
QuickSet V oven controls
Warming drawer
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean oven
Super-large oven capacity
Center oval burner
Non-stick griddle
Power Boil 16,000 BTU Burner
Precise Simmer burner
QuickSet V oven controls
Warming drawer
California Prop 65
Certifications
California Prop 65
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
FEATURES
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Hi / Low Broil |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 16,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Warming Drawer Features | Low, Medium, High Temperature Settings |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Big Clear View Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | White Glass |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Warming Drawer Wattage | 450 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 200 lbs. |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
