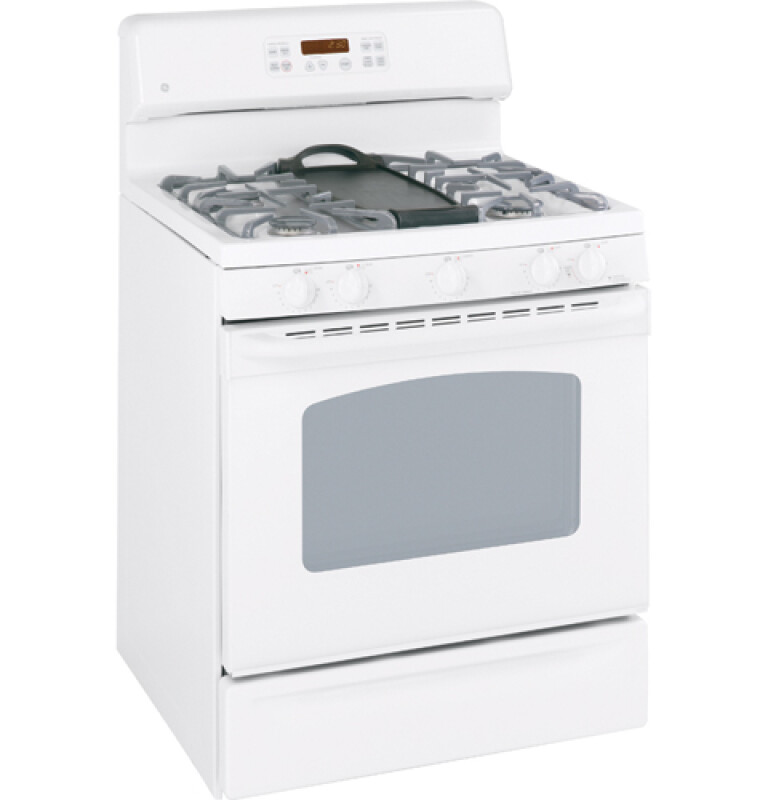

30" Free-Standing Gas Range - JGBP86WELWW
30" Free-Standing Gas Range
Model: JGBP86WELWW
30" Free-Standing Gas Range
Model: JGBP86WELWW
Color : White
Key Features
Self-clean oven
Extra-large oven capacity
Center oval burner
Non-stick griddle
Electronic pilotless ignition
Power Boil 16,000 BTU Burner
Audible preheat signal
Interior oven light
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean oven
Extra-large oven capacity
Center oval burner
Non-stick griddle
Electronic pilotless ignition
Power Boil 16,000 BTU Burner
Audible preheat signal
Interior oven light
Six rack positions
Frameless glass oven door
Big hearth window
TrueTemp system
Sealed cooktop burners
Dishwasher-safe grates
Continuous grates
California Prop 65
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.65 ft³ |
| Dimensional Weight | 269.11 lbs. |
| Total of Cubes | 21.65 ft³ |
| Total of Dimensional Weight | 269.11 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.5 in. |
| Length | 26.25 in. |
| Weight | 200 lbs. |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 16,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet IV |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Self-Clean Oven Door Lock | Manual |
| Cooking Technology | Traditional |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Big Hearth Oven Window |
| Handle | High-Gloss Color-Matched Sculptured |
| Frameless Oven Door(s) | White Glass |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
