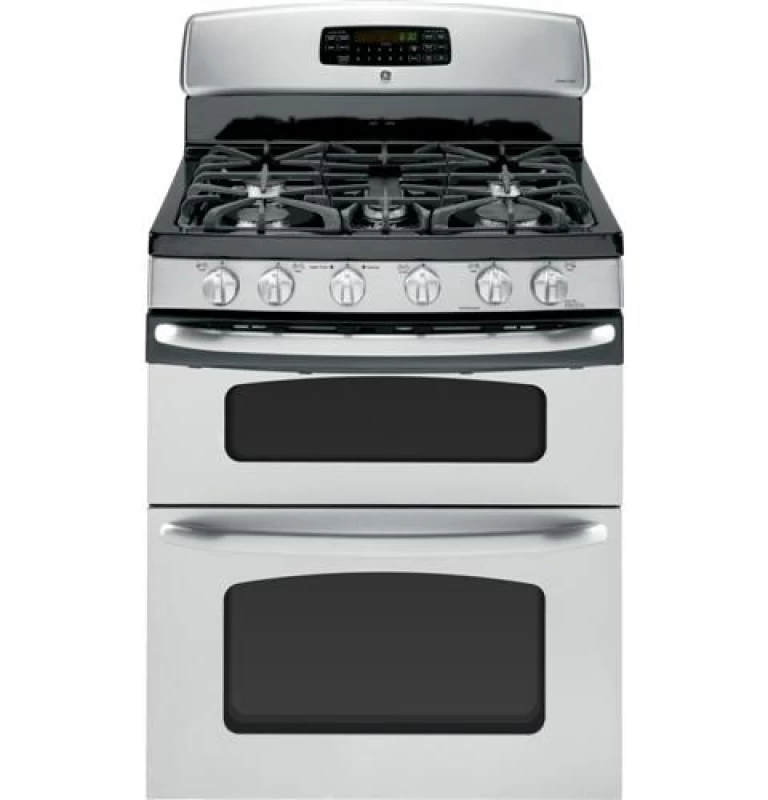

30" Free-Standing Gas Double Oven Range with Convection - JGB870SETSS
30" Free-Standing Gas Double Oven Range with Convection
Model: JGB870SETSS
Product Video
30" Free-Standing Gas Double Oven Range with Convection
Model: JGB870SETSS
Color : Stainless Steel
Replaced By
30" Free-Standing Gas Double Oven Convection Fingerprint Resistant Range with No Preheat Air Fry
Model: PGB965YPFS
$2,299.00
Key Features
Double oven 6.7 cu. ft. total capacity
Gas convection oven
17,000 BTU Power Boil burner
Precise Simmer burner
California Prop 65
Self-clean oven
Non-stick griddle
Description
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Double oven 6.7 cu. ft. total capacity
Gas convection oven
17,000 BTU Power Boil burner
Precise Simmer burner
California Prop 65
Self-clean oven
Non-stick griddle
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.44 in. |
| Shipping Length | 34.69 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 24.45 ft³ |
| Dimensional Weight | 303.95 lbs. |
| Total of Cubes | 24.45 ft³ |
| Total of Dimensional Weight | 303.95 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.44 in. |
| Length | 29.69 in. |
| Weight | 205 lbs. |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/8 x 18-7/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Height to Cooking Surface (in.) | 36 1/4 |
| Depth with Door Open 90° | 43.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 225 lb |
FEATURES
| Configuration | Double Oven Range |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Oven Interior | Oven Interior Light (Both Ovens) |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 3 Oven Racks |
| Power Boil Burner | (1) 17,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| High Output Burner | (1) 11,000 BTU |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Stainless Steel |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Dishwasher Safe Knobs | Yes |
| Leveling System | 4 Leveling Legs |
| Control Type | Digital Temperature Display |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Traditional Upper; Convection Lower |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Easy clean oven door |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Deluxe Heavy-Duty |
| Handle Design | D-shaped |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.1; (1) 5.0; (1) 6.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 12.0 / 10.0 Upper; 16.0 / 1150W Lower |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 10.0 / 10.0 - Upper; 13.5 / 1150W - Lower |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 6.7 cu ft |
| Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
