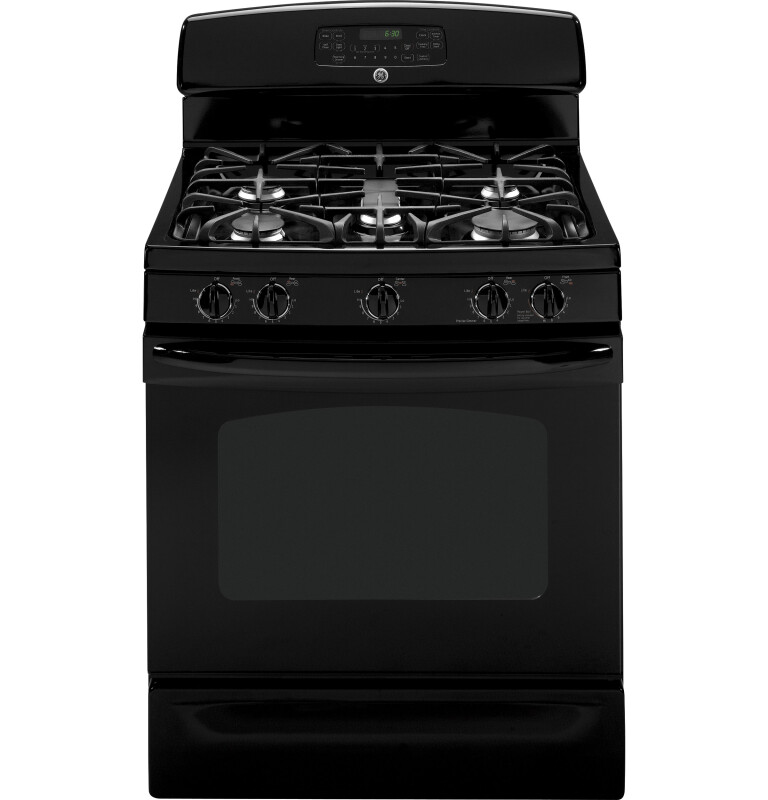

30" Free-Standing Gas Range with Warming Drawer - JGB800DEPBB
30" Free-Standing Gas Range with Warming Drawer
Model: JGB800DEPBB
30" Free-Standing Gas Range with Warming Drawer
Model: JGB800DEPBB
Color : Black
Key Features
Self-clean oven
Super-large 5.0 oven capacity
Heavy-cast, continuous grates
Warming drawer
Reversible cast-iron griddle/grill
Power Boil 17,000 burner
Center oval burner
Deep-recessed cooktop
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean oven
Super-large 5.0 oven capacity
Heavy-cast, continuous grates
Warming drawer
Reversible cast-iron griddle/grill
Power Boil 17,000 burner
Center oval burner
Deep-recessed cooktop
Precise Simmer burner
TrueTemp oven system
California Prop 65
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 31.63 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.73 ft³ |
| Dimensional Weight | 270.08 lbs. |
| Total of Cubes | 21.73 ft³ |
| Total of Dimensional Weight | 270.08 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 26.63 in. |
| Weight | 200 lbs. |
| Net Weight | 200 lb |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
FEATURES
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Oven Control Features | In-Oven Broiling |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Self-Clean |
| Power Boil Burner | (1) 17,000 BTU |
| Temperature Management System | True Temp System |
| High Output Burner | (1) 12,000 BTU |
| Griddle | Reversible Cast Grill/Griddle |
| All-Purpose Burners | (1) 9,500 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 10,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Cooking Technology | Traditional |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Warming Drawer Wattage | 450 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
