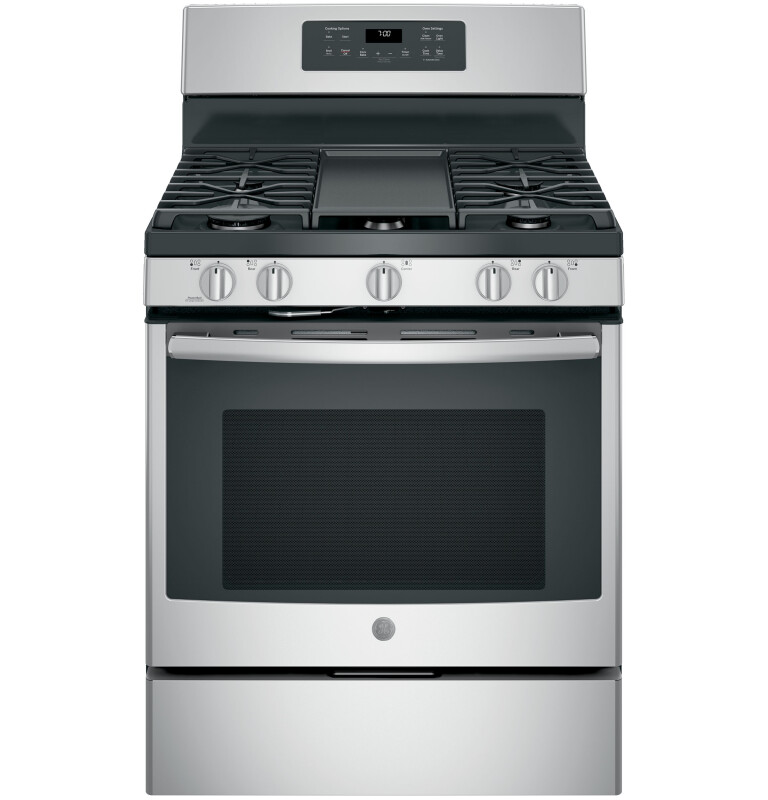

30" Free-Standing Gas Convection Fingerprint Resistant Range - JGB700YEJFS
30" Free-Standing Gas Convection Fingerprint Resistant Range
Model: JGB700YEJFS
Product Video
30" Free-Standing Gas Convection Fingerprint Resistant Range
Model: JGB700YEJFS
Color : Stainless Steel
Key Features
Self-clean with Steam Clean option
Gas convection oven
5.0 cu. ft. oven capacity
California Prop 65
Edge-to-edge cooktop
Extra-large integrated non-stick griddle
18,000 BTU Power Boil burner
Center oval burner
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean with Steam Clean option
Gas convection oven
5.0 cu. ft. oven capacity
California Prop 65
Edge-to-edge cooktop
Extra-large integrated non-stick griddle
18,000 BTU Power Boil burner
Center oval burner
Heavy duty, dishwasher safe grates
Certifications
California Prop 65
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Fingerprint Resistant Stainless |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Delay Bake Option |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Integrated Non-Stick (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Fuel Type | Natural Gas |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Auto Incandescent |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Storage Drawer |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Porcelain-Enamel |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 12.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Optional - JXGRATE1 |
| Griddle Accessory | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
