30" Free-Standing Gas Range - JGB450DEFBB
This product has been discontinued by the manufacture and is no longer available.

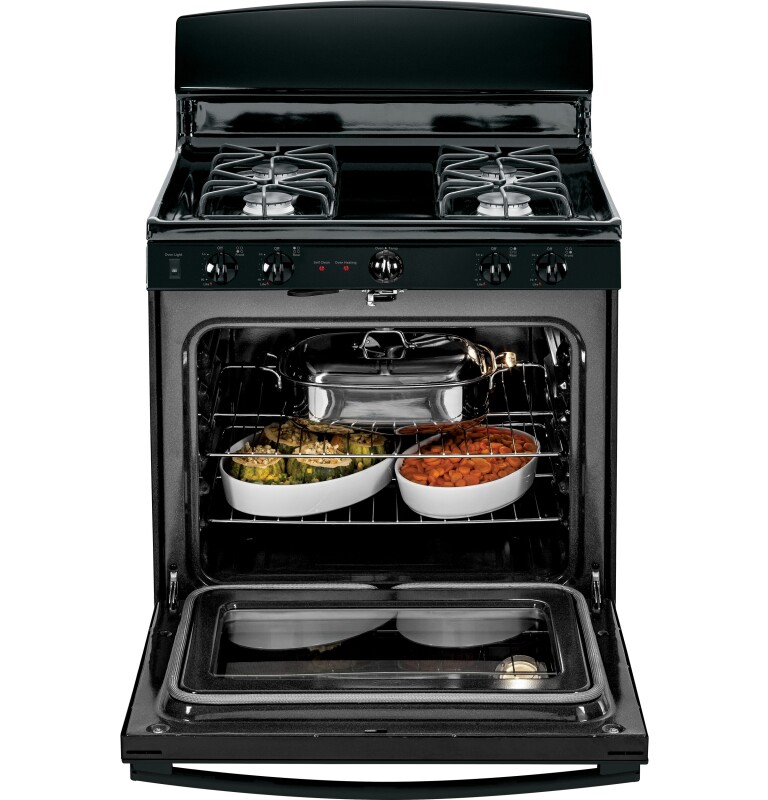

30" Free-Standing Gas Range
Model: JGB450DEFBB
Product Video
2 Videos
This product has been discontinued by the manufacture and is no longer available.
30" Free-Standing Gas Range
Model: JGB450DEFBB
Color : Black
Key Features
12,500 BTU burner
Sealed cooktop burners
4.8 cu. ft. oven capacity
ADA Compliant
California Prop 65
Precise Simmer burner
Self-clean oven
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Specifications
Certifications
Features
12,500 BTU burner
Sealed cooktop burners
4.8 cu. ft. oven capacity
ADA Compliant
California Prop 65
Precise Simmer burner
Self-clean oven
Certifications
California Prop 65
ADA Compliant
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.19 ft³ |
| Dimensional Weight | 288.33 lbs. |
| Total of Cubes | 23.19 ft³ |
| Total of Dimensional Weight | 288.33 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Fuel Type | Natural Gas |
| Oven Interior | 1 Oven Interior Light |
| Oven Control Features | In-Oven Broiling |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Cooktop Type | Standard Grates |
| Product Type | Free-Standing Single Oven |
| Cooktop Burner Grate Material | Heavy Steel |
| Backguard | Scratch-Resistant |
| Burner - Right Front | 12,500 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Storage |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Knob |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Oven Window |
| Handle | Black |
| Control Knobs | Designer-Style |
| Color Appearance | Black |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional Accessories | WB48X21543 Roller Rack |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 28.5 in. |
| Weight | 190 lbs. |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
