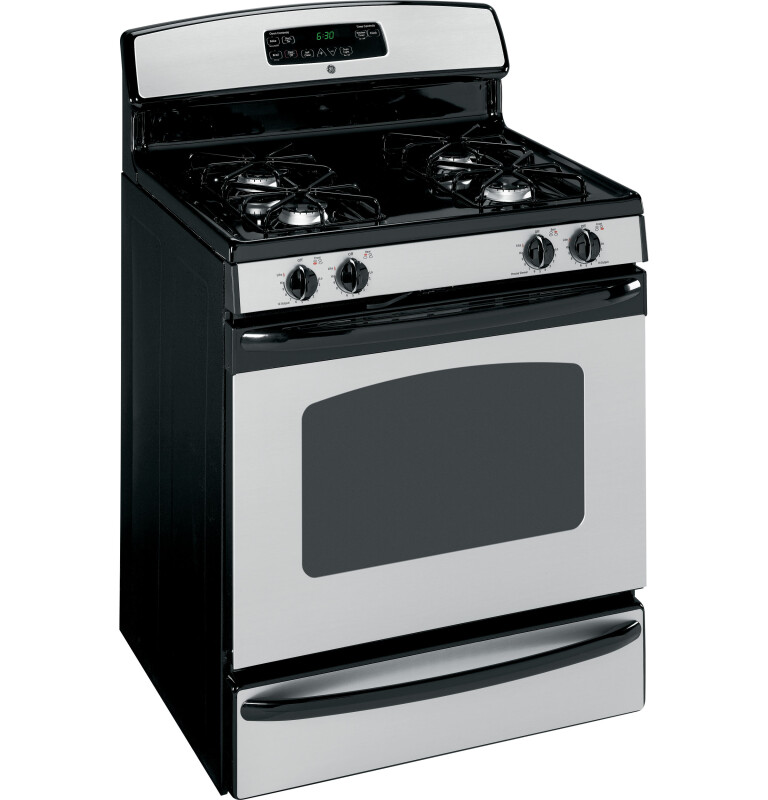

30" Free-Standing Gas Range - JGB280MENBS
30" Free-Standing Gas Range
Model: JGB280MENBS
30" Free-Standing Gas Range
Model: JGB280MENBS
Color : CleanSteel
Key Features
Self-clean oven
Extra-large oven capacity
All purpose burners
TrueTemp oven system
Deluxe grates
Precise Simmer burner
Designer-style handle
Storage drawer
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean oven
Extra-large oven capacity
All purpose burners
TrueTemp oven system
Deluxe grates
Precise Simmer burner
Designer-style handle
Storage drawer
Porcelain upswept cooktop
Electronic pilotless ignition
Audible preheat signal
Certified Sabbath mode
Interior oven light
Multiple oven rack positions
Big hearth window
California Prop 65
Certifications
California Prop 65
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | 190 lbs. |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 12,000/1,000 BTU |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Grate Material | Deluxe Grates |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Storage Drawer | Yes With Liner |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet III |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | CleanSteel™ |
| Control Knobs | Designer-Style |
| Color Appearance | CleanSteel™ |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.8 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
