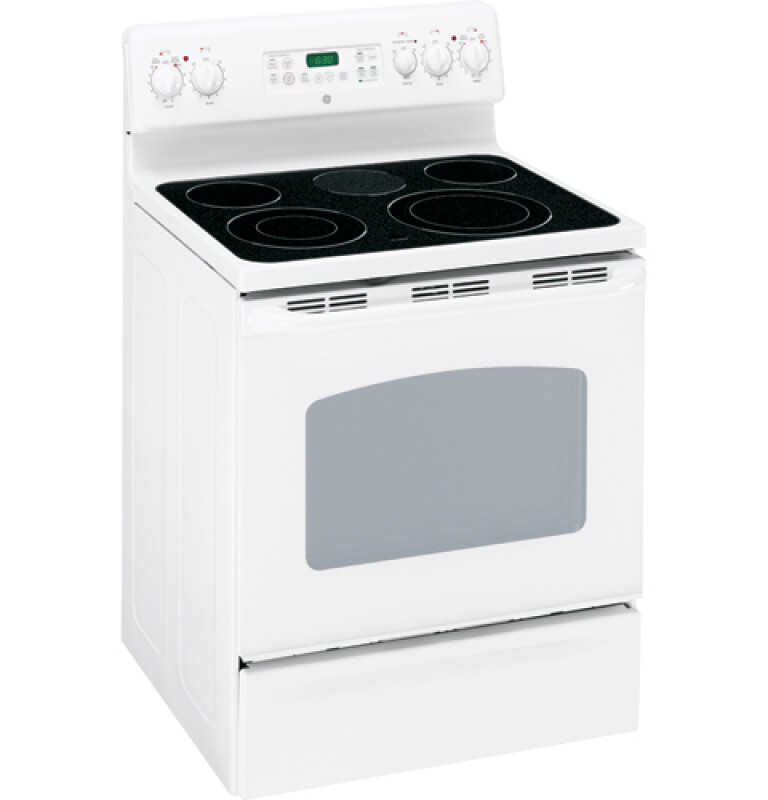

30" Free-Standing Electric Range - JBP80WKWW
30" Free-Standing Electric Range
Model: JBP80WKWW
30" Free-Standing Electric Range
Model: JBP80WKWW
Color : White
Key Features
Self-clean oven
Super-large 5.3 cu. ft. oven capacity
TrueTemp system
Dual size ribbon elements
Warming zone
QuickSet IV oven controls
Ceramic glass cooktop
California Prop 65
Available from Devixel Super King Appliance, serving customers throughout Missouri.
Features
Self-clean oven
Super-large 5.3 cu. ft. oven capacity
TrueTemp system
Dual size ribbon elements
Warming zone
QuickSet IV oven controls
Ceramic glass cooktop
California Prop 65
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 195 lbs. |
| Total of Shipping Weight | 195 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 155 lbs. |
| Net Weight | 155 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 175 lb |
FEATURES
| 6"/9" Dual Heating Element | 1 Ribbon (2,500W) |
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Cleaning Time | Variable with Delay Clean Option |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Warming Zone | 1-6" Ribbon (120W) |
| Oven Control Features | Variable Broil |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Self-Clean Heavy-Duty Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1, Cooktop |
| Heating Element "ON" Indicator Light | Yes |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W) |
| Cooktop Surface | Patterned White on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| Dishwasher Safe Knobs | Yes |
| Control Type | Touchpads |
| Cooking Technology | Traditional |
POWER / RATINGS
| KW Rating at 240V | 12.1 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 9.1 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | White Frameless Glass Door |
| Handle | Color-Matched High-Gloss |
| Textured Steel Side Panels | Yes |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.3 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| Cooktop Cleaning | Sponge |
