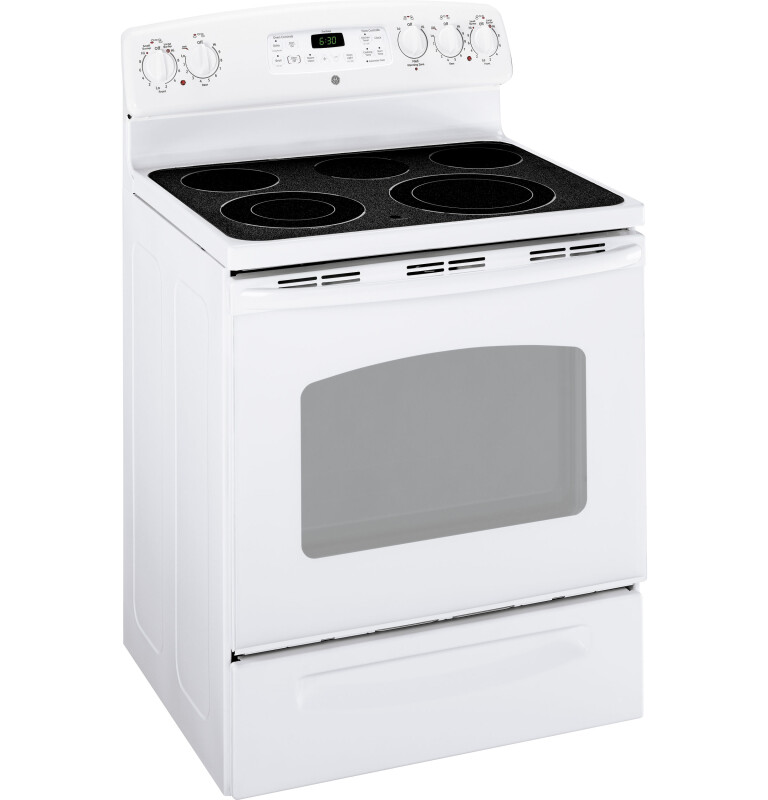

30" Free-Standing Electric Range - JB500DTWW
This product has been discontinued by the manufacture and is no longer available.
30" Free-Standing Electric Range
Model: JB500DTWW
Features
Specifications
Certifications
Features
California Prop 65
Certifications
California Prop 65
Specifications
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 176 lbs. |
| Total of Shipping Weight | 176 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | Hidden Bake |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Pad |
| Oven Interior | Hidden Bake |
| Melt Setting | Yes |
| Warming Zone | 1 Ribbon (120W) |
| Oven Control Features | Start Pad |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Standard Clean with Steam Option |
| Style | Smoothtop |
| Hot Surface Indicator Lights | 1, Cooktop |
| Heating Element "ON" Indicator Light | 2 |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W Power Boil) |
| Cooktop Surface | Patterned White on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| 8" Heating Element (s) | 1 Ribbon |
| Dishwasher Safe Knobs | Yes |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Touchpads |
| Cooking Technology | Traditional |
POWER / RATINGS
| KW Rating at 240V | 12.9 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 9.7 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | White Frameless Glass Door |
| Handle | Color-Matched High-Gloss |
| Textured Steel Side Panels | Yes |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.3 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| Cooktop Cleaning | Sponge |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 136 lbs. |
| Net Weight | 136 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 156 lb |
